3BHB003431R0001 勵磁控制模塊
1.產 品 資 料 介 紹：
中文資料：
3BHB003431R0001勵磁控制模塊是ABB的一種關鍵組件，廣泛應用于電力發電領域，特別是用于控制發電機的勵磁系統。以下是關于該勵磁控制模塊的一些主要特點和應用：
主要特點：
- 勵磁系統控制：該模塊主要用于調整發電機的磁場激勵，從而控制電壓和頻率，確保發電機在運行時產生穩定的電力輸出。
- 穩定性控制：3BHB003431R0001勵磁控制模塊通常具有確保電力系統穩定性的功能，這包括電壓穩定性和頻率穩定性。
- 通信接口：模塊通常配備有通信接口，以便與其他電力系統組件、監控設備和控制系統進行通信。
- 保護功能：該模塊具有發電機和勵磁系統的保護功能，能夠防止過載和故障。
- 可編程性：部分勵磁控制模塊支持編程，以適應不同類型的發電機和應用需求。
應用領域：
- 電力發電：3BHB003431R0001勵磁控制模塊通常用于控制各種類型的發電機，包括同步發電機和異步發電機，在電力發電廠中發揮著關鍵作用。
- 電力系統穩定性：對于確保電力系統的穩定性至關重要，特別是在負載變化和故障情況下，能夠保持電力系統的穩定。
- 發電機保護：該模塊還用于保護發電機，防止因過載、短路和其他可能的故障情況導致的損害。
- 電網控制：在電網控制系統中，該模塊確保電力系統的穩定性和可靠性。
檢查與維護：
在維護3BHB003431R0001勵磁控制模塊時，需要檢查模塊是否接地。在電源關閉的情況下，通過測量每個端子和位于端子9下方的接地螺栓，可以檢查接地情況。通常，任一端子都可以接地，根據當?shù)胤ㄒ?guī)或通過其他設備供電。如果檢測到接地電阻過高，可能需要進行進一步的排查和修復。
總之，3BHB003431R0001勵磁控制模塊是ABB電力發電解決方案中的重要組成部分，為發電機的穩定運行和電力系統的可靠性提供了關鍵支持。
英文資料
The 3BHB003431R0001 excitation control module is a key component of ABB, widely used in the field of power generation, especially for controlling the excitation system of generators. The following are some main characteristics and applications of the excitation control module:
Main features:
Excitation system control: This module is mainly used to adjust the magnetic field excitation of the generator, in order to control voltage and frequency, and ensure stable power output of the generator during operation.
Stability control: The 3BHB003431R0001 excitation control module usually has the function of ensuring the stability of the power system, including voltage stability and frequency stability.
Communication Interface: Modules are typically equipped with communication interfaces for communication with other power system components, monitoring equipment, and control systems.
Protection function: This module has protection functions for the generator and excitation system, which can prevent overload and faults.
Programmability: Some excitation control modules support programming to adapt to different types of generators and application requirements.
Application field:
Electric power generation: The 3BHB003431R0001 excitation control module is commonly used to control various types of generators, including synchronous and asynchronous generators, playing a crucial role in power plants.
Power system stability: It is crucial to ensure the stability of the power system, especially in the event of load changes and faults, to maintain the stability of the power system.
Generator protection: This module is also used to protect the generator from damage caused by overload, short circuit, and other possible fault situations.
Power grid control: In the power grid control system, this module ensures the stability and reliability of the power system.
Inspection and maintenance:
When maintaining the 3BHB003431R0001 excitation control module, it is necessary to check whether the module is grounded. With the power off, the grounding condition can be checked by measuring each terminal and the grounding bolt located below terminal 9. Usually, any terminal can be grounded and powered by local regulations or other equipment. If a high grounding resistance is detected, further investigation and repair may be necessary.
In summary, the 3BHB003431R0001 excitation control module is an important component of ABB's power generation solution, providing critical support for the stable operation of the generator and the reliability of the power system.

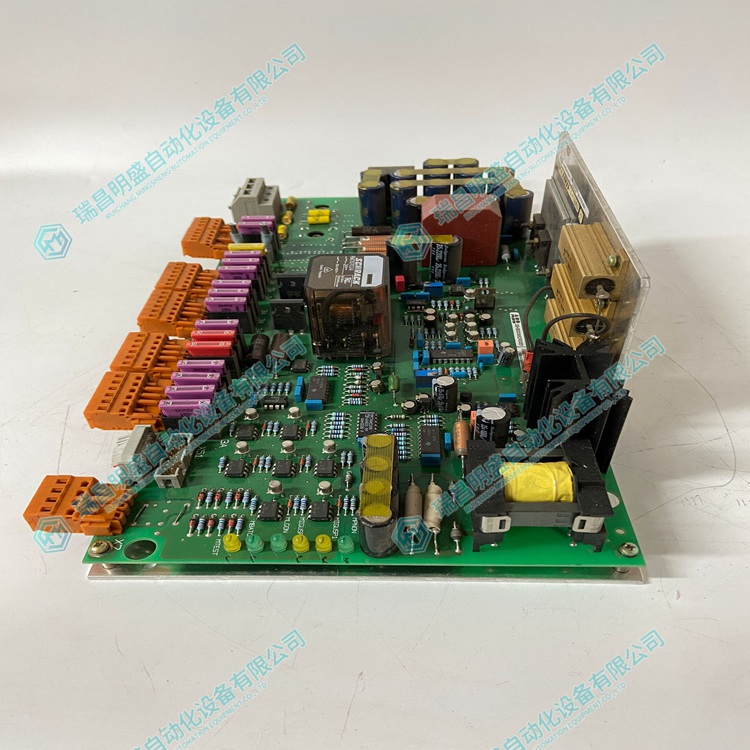

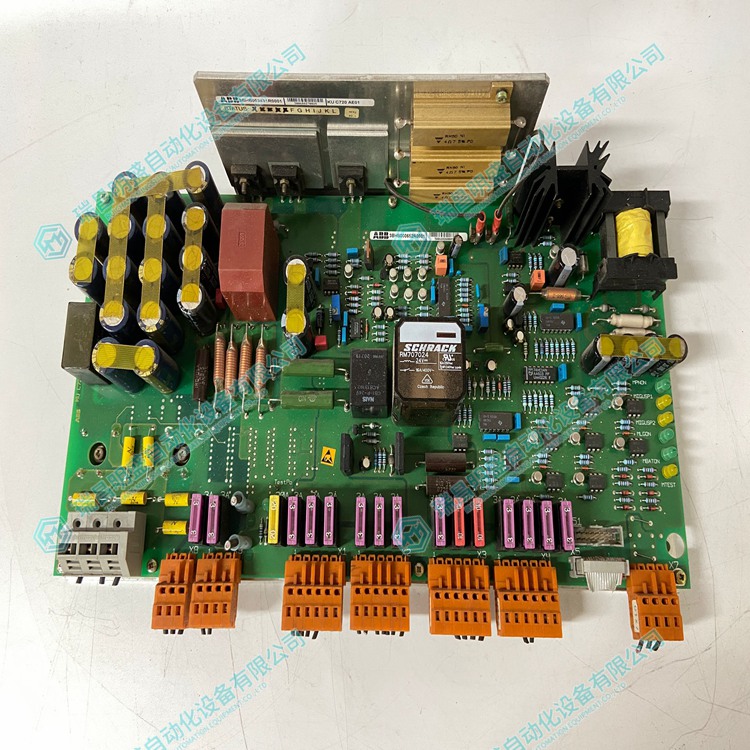

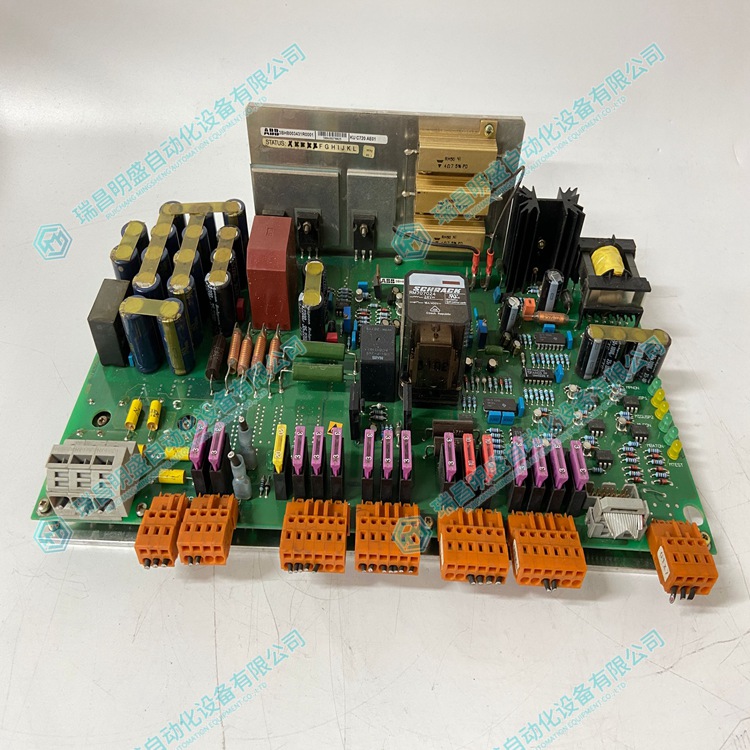

2.產 品 展 示
3.產 品 展 示
