BENTLY 3500/70 125720-01通道繼電器模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
Bently Nevada 3500/70 125720-01 通道繼電器模塊是 3500 系列機械保護和狀態監測系統中的一個重要組件。該模塊專門用于提供繼電器輸出功能，能夠將監測到的異常情況通過繼電器信號傳遞給控制系統或報警系統。以下是該模塊的主要特點、功能和應用領域：
主要特點：
- 高可靠性：設計用于工業環境，具有高可靠性和耐用性，能夠在嚴苛條件下長時間穩定工作。
- 多通道支持：通常支持多個獨立通道，能夠同時處理多個輸入信號。
- 模塊化設計：便于安裝、維護和更換，減少系統停機時間。
- 狀態指示：配備LED指示燈，顯示模塊狀態和活動，便于實時監控和故障診斷。
- 兼容性：與3500系列其他模塊兼容，提供一致的接口和電氣特性，確保系統的整體協調性。
功能：
- 報警功能：當監測到的參數超出預設范圍時，繼電器模塊會觸發報警，通知操作人員進行處理。
- 控制功能：可以與其他控制系統集成，實現對設備的自動控制，如啟動和停止機器或系統。
- 冗余配置：支持冗余配置，確保在一個模塊發生故障時，系統仍能正常運行，提供高可用性。
- 事件記錄：記錄報警和控制事件，便于事后分析和故障排查。
- 靈活配置：通過軟件配置，可以靈活設置不同的報警和控制策略，適應不同的應用需求。
應用領域：
- 發電廠：用于監測和保護發電設備，如汽輪機、發電機等，提供報警和控制功能，確保設備安全運行。
- 石油和天然氣：在石油和天然氣行業中用于監測和保護壓縮機、泵等旋轉設備，提供報警和控制功能，確保生產過程的安全和穩定。
- 化工廠：用于化工廠中關鍵旋轉設備的監測和保護，通過報警和控制功能，防止設備故障引發的安全問題，提高生產安全性。
- 冶金和采礦：在冶金和采礦行業中用于監測和保護各種大型旋轉機械設備，提供報警和控制功能，確保其穩定運行和高效生產。
- 海上平臺：用于海上石油平臺和鉆井設備的監測和保護，通過報警和控制功能，防止設備故障導致的生產中斷，保障海上作業的連續性。
英文資料：
The Bently Nevada 3500/70 125720-01 channel relay module is an important component of the 3500 series mechanical protection and condition monitoring system. This module is specifically designed to provide relay output function, which can transmit detected abnormal situations to the control system or alarm system through relay signals. The following are the main features, functions, and application areas of this module:
Main features:
High reliability: Designed for industrial environments, it has high reliability and durability, and can work stably for a long time under harsh conditions.
Multi channel support: typically supports multiple independent channels, capable of processing multiple input signals simultaneously.
Modular design: easy to install, maintain, and replace, reducing system downtime.
Status indication: Equipped with LED indicator lights to display module status and activity, facilitating real-time monitoring and fault diagnosis.
Compatibility: Compatible with other modules in the 3500 series, providing consistent interfaces and electrical characteristics to ensure overall system coordination.
Function:
Alarm function: When the monitored parameters exceed the preset range, the relay module will trigger an alarm and notify the operator to take action.
Control function: It can be integrated with other control systems to achieve automatic control of equipment, such as starting and stopping machines or systems.
Redundant configuration: Supports redundant configuration to ensure that the system can still operate normally in the event of a module failure, providing high availability.
Event recording: Record alarm and control events for post event analysis and troubleshooting.
Flexible configuration: Through software configuration, different alarm and control strategies can be flexibly set to meet different application requirements.
Application areas:
Power plant: used for monitoring and protecting power generation equipment, such as turbines, generators, etc., providing alarm and control functions to ensure safe operation of equipment.
Oil and gas: Used in the oil and gas industry to monitor and protect rotating equipment such as compressors and pumps, provide alarm and control functions, and ensure the safety and stability of the production process.
Chemical plant: used for monitoring and protecting key rotating equipment in chemical plants, preventing safety issues caused by equipment failures through alarm and control functions, and improving production safety.
Metallurgy and Mining: Used in the metallurgy and mining industry to monitor and protect various large rotating machinery and equipment, providing alarm and control functions to ensure their stable operation and efficient production.
Offshore platform: used for monitoring and protecting offshore oil platforms and drilling equipment, preventing production interruptions caused by equipment failures through alarm and control functions, and ensuring the continuity of offshore operations.

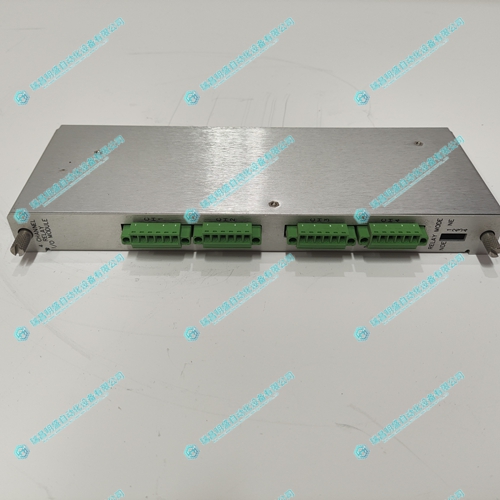

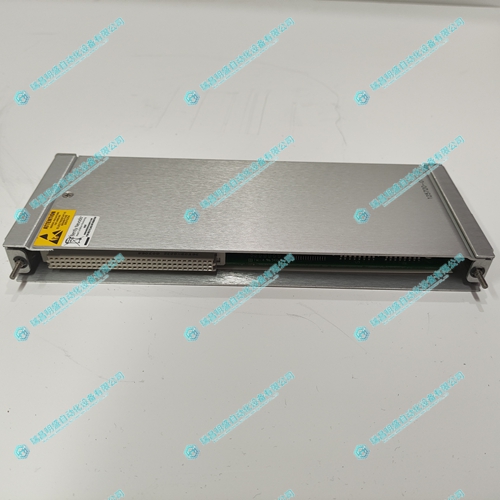

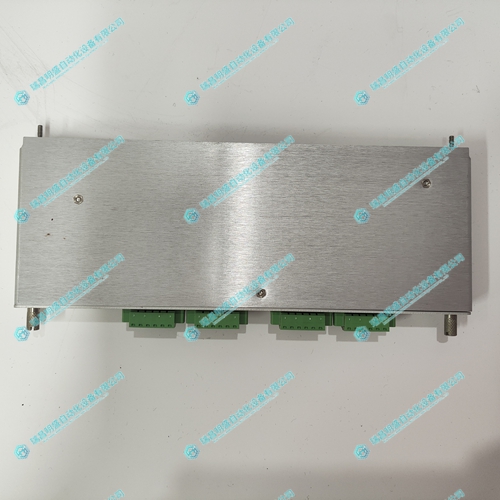

2.產 品 展 示
3.其他產品
3BSE042238R1Touch screen module
500CIM05 1MRB150077R1B Communication interface module
500BIO01 1MRB150005R1J inverter control unit
