TRICONEX 8305A分散型控制系統 PDF資料
1.產 品 資 料 介 紹：
中文資料：
TRICONEX 8305A 是一款用于 分散型控制系統（DCS） 的模塊，屬于 Triconex 系列，廣泛應用于工業安全和控制領域，特別是在需要高安全性和可靠性的場合，如石油、天然氣、化工、電力等行業。Triconex 系統以其 高容錯性和三重冗余架構（Triple Modular Redundancy, TMR）聞名，確保系統在關鍵任務環境中保持穩定和安全運行。
TRICONEX 8305A 模塊的主要特點：
高安全完整性等級 (SIL 3)：
- TRICONEX 8305A 專為需要高度安全性的應用設計，符合 SIL 3 (Safety Integrity Level 3) 認證標準。
- 適用于 緊急停機系統 (ESD)、火氣系統 (FGS) 和 透平機械控制 (TMC) 等關鍵應用，確保系統在發生緊急情況時能夠安全停機或繼續運行。
三重模塊冗余 (TMR)：
- 8305A 模塊采用 TMR 架構，配備三條獨立的處理路徑。每條路徑會實時進行相互校驗，即使其中一條路徑出現故障，系統仍能繼續安全運行。
- 該架構確保了系統的高容錯性和高可用性，使其適合于任何關鍵任務環境中連續運行。
分布式控制架構：
- 8305A 模塊支持 分布式控制，允許多個模塊分布在不同地點進行控制。這樣可以提高系統的靈活性，并減少單點故障的風險。
- 分布式架構有助于提升整個工廠或設備的控制效率和安全性。
熱插拔功能：
- 8305A 模塊支持 熱插拔，即無需關閉系統即可更換模塊，減少了維護時的停機時間。
- 這對于需要不間斷運行的工廠和工業設備來說非常重要，能夠顯著提高設備的可用性。
冗余通信：
- 支持 冗余通信路徑，即使一條通信線路出現故障，系統仍能通過備用路徑正常工作。
- 這種雙重保障提高了系統的可靠性，確保關鍵數據的持續傳輸。
綜合診斷功能：
- 8305A 模塊具有強大的 自我診斷功能，能夠持續檢測系統狀態，識別并隔離故障。這樣有助于提前發現潛在問題，并在問題升級前采取措施。
- 通過這種方式，系統可以保持較高的運行安全性和可靠性。
合規性和認證：
- TRICONEX 8305A 符合多種工業標準，包括 IEC 61508 安全標準，適用于 SIL 2/3 的安全等級應用。
- 模塊設計能夠在 惡劣的工業環境 中可靠工作，具備耐高溫、抗?jié)瘛⒖闺姶鸥蓴_等特點
英文資料：
TRICONEX 8305A is a module for distributed control systems (DCS), belonging to the Triconex series, widely used in the fields of industrial safety and control, especially in applications that require high safety and reliability, such as the petroleum, natural gas, chemical, power and other industries. The Triconex system is renowned for its high fault tolerance and Triple Modular Redundancy (TMR) architecture, ensuring stable and safe operation in critical mission environments.
The main features of the TRICONEX 8305A module are:
High Safety Integrity Level (SIL 3):
The TRICONEX 8305A is designed for applications that require high levels of safety and complies with SIL 3 (Safety Integrity Level 3) certification standards.
Suitable for critical applications such as emergency shutdown systems (ESD), fire and gas systems (FGS), and turbine machinery control (TMC), ensuring that the system can safely shut down or continue to operate in the event of an emergency.
Triple Modular Redundancy (TMR):
The 8305A module adopts TMR architecture and is equipped with three independent processing paths. Each path will undergo real-time mutual verification, and even if one of the paths fails, the system can continue to operate safely.
This architecture ensures high fault tolerance and availability of the system, making it suitable for continuous operation in any critical task environment.
Distributed Control Architecture:
The 8305A module supports distributed control, allowing multiple modules to be distributed in different locations for control. This can improve the flexibility of the system and reduce the risk of single point of failure.
Distributed architecture helps improve the control efficiency and safety of the entire factory or equipment.
Hot swappable function:
The 8305A module supports hot swapping, which means that the module can be replaced without shutting down the system, reducing downtime during maintenance.
This is very important for factories and industrial equipment that require uninterrupted operation, as it can significantly improve equipment availability.
Redundant communication:
Support redundant communication paths, even if one communication line fails, the system can still function normally through the backup path.
This dual guarantee improves the reliability of the system and ensures the continuous transmission of critical data.
Comprehensive diagnostic function:
The 8305A module has powerful self diagnostic capabilities, which can continuously detect system status, identify and isolate faults. This helps to detect potential issues in advance and take measures before they escalate.
In this way, the system can maintain high operational safety and reliability.
Compliance and Certification:
The TRICONEX 8305A complies with multiple industry standards, including the IEC 61508 safety standard, and is suitable for safety level applications up to SIL 2/3.
Module design can work reliably in harsh industrial environments, with characteristics such as high temperature resistance, moisture resistance, and electromagnetic interference resistance

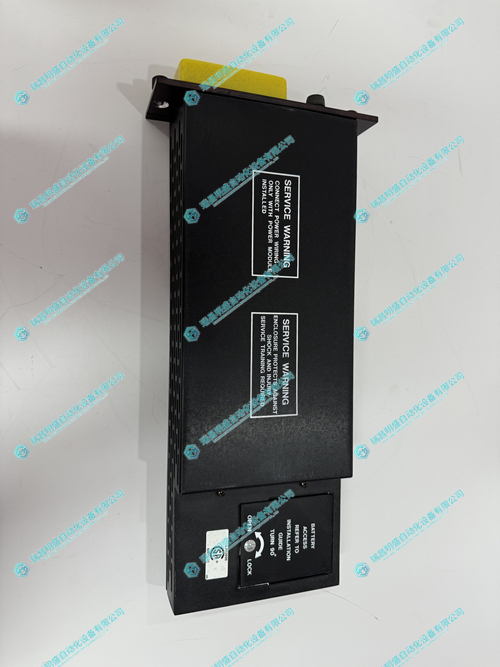

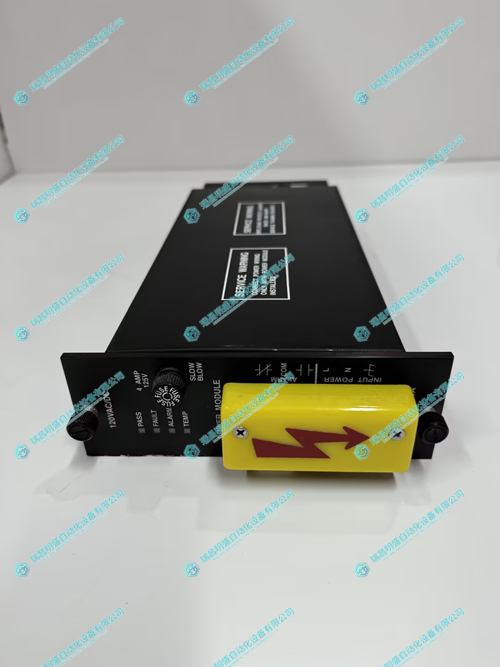

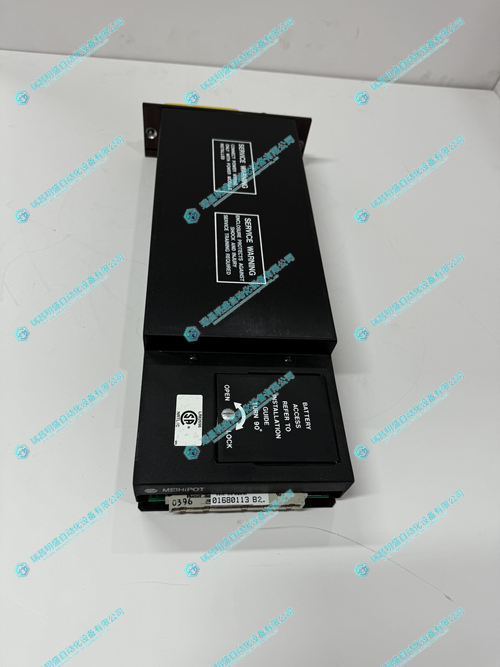

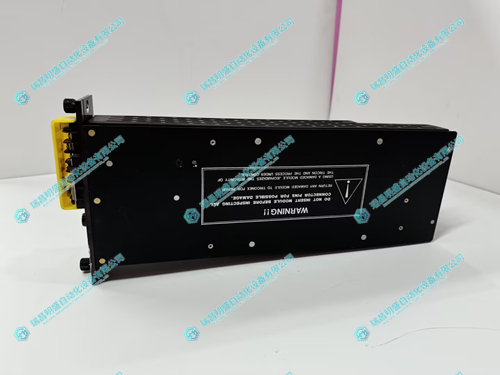

2.產 品 展 示
