NI PXIE-5163示波器模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
NI PXIE-5163 是由 National Instruments 提供的一款高性能示波器模塊，專為 PXI（PCI eXtensions for Instrumentation）平臺設計，主要應用于測試和測量領域。該模塊結合了高速采樣、豐富的功能和靈活的集成選項，適用于各種動態信號分析和故障診斷應用。
主要特點：
高采樣率和分辨率：
- 提供高達 1 GHz 的帶寬和 5 GSa/s 的采樣率，適用于高速信號的測量與分析。
- 具有 12-bit 分辨率，能夠更精確地捕捉微小的信號變化。
靈活的輸入通道：
- 配備多個輸入通道，支持 雙通道 或更多配置，便于同時采集多路信號。
高精度觸發功能：
- 提供多種觸發選項，能夠精確地捕捉到感興趣的信號事件，適應不同的測試需求。
可擴展的PXI平臺：
- 與 PXI 設備兼容，支持與其他測試和測量模塊的集成，具有良好的擴展性和靈活性。
- 支持 NI LabVIEW 和 NI TestStand 等軟件平臺，提供豐富的軟件支持，適用于自動化測試和系統集成。
深度存儲：
- 配備大容量存儲，可以捕捉長時間的信號，適用于高精度的波形捕捉和分析。
實時波形分析：
- 支持實時的波形顯示和分析，提供各種波形顯示模式，如 FFT分析、周期分析、觸發波形 等，方便用戶進行信號分析。
控制與操作：
- 圖形化操作界面：通過 LabVIEW 或其他控制軟件，用戶可以實現圖形化編程，方便信號的采集、處理和分析。
- 遠程控制功能：通過 Ethernet 或 GPIB 等通訊接口，用戶可以實現遠程操作，進行自動化測試。
應用領域：
- 高速信號采集：適用于高速通信系統、射頻信號、微波頻段等高速信號的測量和分析。
- 電子設計和開發：用于電子原型開發過程中，驗證電路設計的性能，特別是在高帶寬、高采樣率需求的應用中。
- 自動化測試：適用于自動化測試系統中的信號監測和分析，廣泛應用于生產線測試和質量控制中。
- 科學研究：廣泛用于物理學、工程學以及其他科學研究領域中，進行精密的動態信號測量與分析。
NI PXIE-5163 示波器模塊，憑借其高性能、高精度和靈活性，成為許多高要求測試和測量系統中的理想選擇，尤其在高速信號采集和自動化測試系統中得到了廣泛應用。
英文資料：
NI PXIE-5163 is a high-performance oscilloscope module provided by National Instruments, designed specifically for the PXI (PCI eXtensions for Instrumentation) platform, mainly used in the fields of testing and measurement. This module combines high-speed sampling, rich functionality, and flexible integration options, suitable for various dynamic signal analysis and fault diagnosis applications.
Main features:
High sampling rate and resolution:
Provides a bandwidth of up to 1 GHz and a sampling rate of 5 GSa/s, suitable for measuring and analyzing high-speed signals.
With a 12 bit resolution, it can more accurately capture small signal changes.
Flexible input channels:
Equipped with multiple input channels, supporting dual channel or more configurations, making it easy to simultaneously collect multiple signals.
High precision triggering function:
Provide multiple triggering options to accurately capture the signal events of interest and adapt to different testing needs.
Scalable PXI platform:
Compatible with PXI devices, supports integration with other testing and measurement modules, and has good scalability and flexibility.
Supports software platforms such as NI LabVIEW and NI TestStand, providing rich software support suitable for automated testing and system integration.
Deep storage:
Equipped with large capacity storage, it can capture signals for a long time and is suitable for high-precision waveform capture and analysis.
Real time waveform analysis:
Support real-time waveform display and analysis, providing various waveform display modes such as FFT analysis, cycle analysis, trigger waveform, etc., to facilitate user signal analysis.
Control and operation:
Graphical operation interface: Through LabVIEW or other control software, users can achieve graphical programming, which facilitates signal acquisition, processing, and analysis.
Remote control function: Users can perform remote operations and automated testing through communication interfaces such as Ethernet or GPIB.
Application areas:
High speed signal acquisition: suitable for measuring and analyzing high-speed signals such as high-speed communication systems, RF signals, microwave frequency bands, etc.
Electronic design and development: used in the process of electronic prototype development to verify the performance of circuit design, especially in applications with high bandwidth and high sampling rate requirements.
Automated testing: suitable for signal monitoring and analysis in automated testing systems, widely used in production line testing and quality control.
Scientific research: widely used in physics, engineering, and other scientific research fields for precise dynamic signal measurement and analysis.
The NI PXIE-5163 oscilloscope module, with its high performance, high precision, and flexibility, has become an ideal choice for many high demand testing and measurement systems, especially widely used in high-speed signal acquisition and automated testing systems.

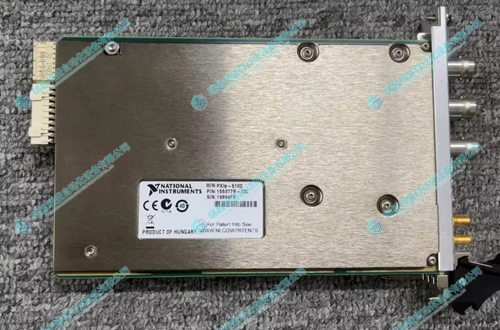

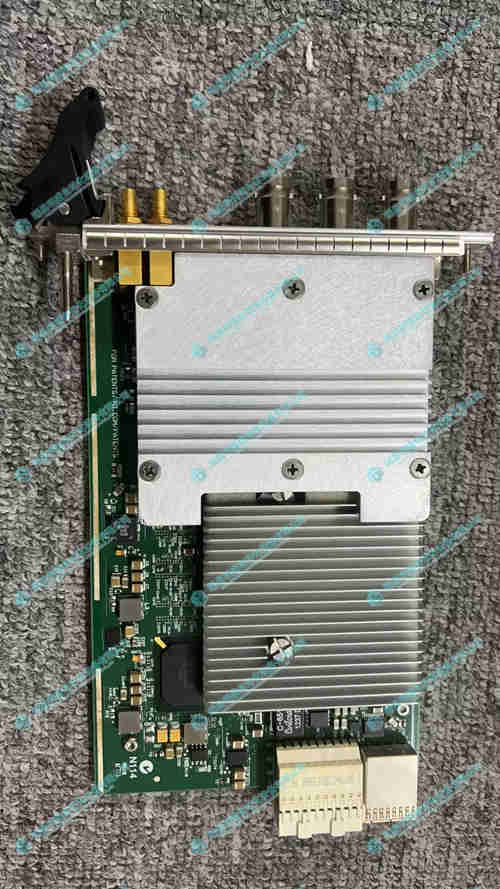

2.產 品 展 示
