TRICONEX 3664數字輸出模塊 PDF資料
1.產 品 資 料 介 紹：
TRICONEX 3664 數字輸出模塊 產品特點：
產品概述：
TRICONEX 3664 是 Tricon 安全控制系統（Tricon Safety System）中的高可靠性數字輸出模塊，用于控制現場設備如電磁閥、繼電器、執行機構等。該模塊在安全儀表系統（SIS）中發揮關鍵作用，廣泛用于過程聯鎖與緊急停車（ESD）控制應用。三重冗余架構 (TMR)：
采用 Tricon 獨有的 Triple Modular Redundant（三模冗余） 架構，內部包含三路獨立輸出通道，通過投票機制實現容錯控制，確保單點故障不會影響系統輸出。輸出通道設計：
模塊提供多通道數字輸出（典型為 32 點）
每個輸出通道均具備光電隔離設計，有效防止通道間干擾
輸出類型支持繼電器或晶體管輸出，可直接驅動現場負載
具備短路與過載保護，提升系統可靠性
高安全等級：
模塊符合 IEC 61508 SIL3 安全完整性等級標準，滿足嚴苛的安全與可靠性要求，常用于關鍵過程安全控制系統。診斷與監測功能：
具備完善的自診斷與狀態監測機制，可實時檢測輸出信號狀態、通道健康狀況、硬件故障及通信完整性。
若檢測到異常，系統自動隔離故障通道并發出報警，不影響其他通道正常運行。系統通信：
模塊通過背板總線與主處理模塊 (Main Processor) 通信，進行信號同步與邏輯控制，實現高速數據傳輸與協調操作。熱插拔設計：
支持帶電熱插拔，維護更方便，無需停機即可更換模塊，提升系統可用性。工業級可靠性：
采用工業級元器件，具備強抗電磁干擾、防震動、防塵能力，可在惡劣環境中長期穩定運行。電源與功耗：
支持 24V DC 電源供電，輸出電流容量高，能直接驅動中小功率負載。典型應用領域：
石油化工與天然氣裝置的緊急停車系統 (ESD)
煉油與化工過程安全控制
電廠鍋爐保護與渦輪機控制
海上平臺、LNG 終端安全系統
核心設備聯鎖控制與報警系統
TRICONEX 3664數字輸出模塊 英文介紹
TRICONEX 3664 Digital Output Module Product Features:
Product Overview:
TRICONEX 3664 is a high reliability digital output module in the Tricon Safety System, used to control field devices such as solenoid valves, relays, actuators, etc. This module plays a critical role in Safety Instrumented Systems (SIS) and is widely used in process interlocking and Emergency Shutdown (ESD) control applications.
Triple Redundancy Architecture (TMR):
Adopt Tricon's unique Triple Modular Redundant architecture, which contains three independent output channels. Fault tolerance control is achieved through voting mechanism to ensure that a single point of failure will not affect the system output.
Output channel design:
The module provides multi-channel digital outputs (typically 32 points)
Each output channel is equipped with optoelectronic isolation design, effectively preventing interference between channels
Output type supports relay or transistor output, which can directly drive on-site loads
Equipped with short-circuit and overload protection to enhance system reliability
High security level:
The module complies with the IEC 61508 SIL3 safety integrity level standard, meeting stringent safety and reliability requirements, and is commonly used in critical process safety control systems.
Diagnostic and monitoring functions:
Equipped with a comprehensive self diagnosis and status monitoring mechanism, it can detect real-time output signal status, channel health status, hardware failures, and communication integrity.
If an abnormality is detected, the system automatically isolates the faulty channel and issues an alarm, without affecting the normal operation of other channels.
System communication:
The module communicates with the Main Processor through the backplane bus for signal synchronization and logic control, achieving high-speed data transmission and coordinated operations.
Hot swappable design:
Supports hot swapping, making maintenance more convenient and allowing for module replacement without shutting down, improving system availability.
Industrial grade reliability:
Using industrial grade components, it has strong resistance to electromagnetic interference, vibration, and dust, and can operate stably for a long time in harsh environments.
Power supply and power consumption:
Supports 24V DC power supply, with high output current capacity, capable of directly driving small and medium power loads.
Typical application areas:
Emergency Shutdown System (ESD) for Petrochemical and Natural Gas Plants
Safety Control in Refining and Chemical Processes
Power plant boiler protection and turbine control
Offshore platform, LNG terminal safety system
Core equipment interlocking control and alarm system

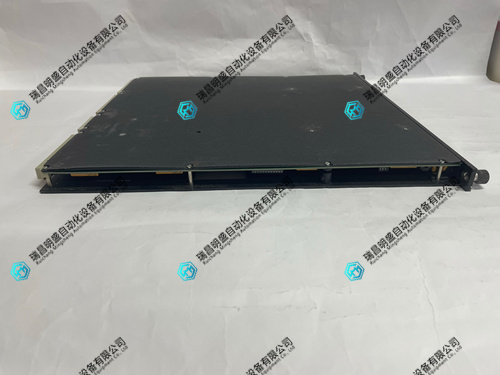

TRICONEX 3664數字輸出模塊 產品展示
