TRICONEX 3700A分析模塊 PDF資料
1.產 品 資 料 介 紹：
TRICONEX 3700A 分析模塊 產品特點
產品概述：
TRICONEX 3700A 分析模塊是 Tricon 安全控制系統（Tricon Safety System）中的關鍵模塊之一，用于監測、采集和分析工業過程中的模擬和數字信號，為主處理器提供可靠的實時數據。數據采集能力：
支持多路模擬輸入（AI）和數字輸入（DI）信號采集。
可對溫度、壓力、流量、電壓、電流等多種工藝參數進行實時監測。
高精度數據采集，保證系統控制和安全邏輯的準確性。
分析與處理功能：
對采集的信號進行實時分析、濾波和異常檢測。
可生成報警信號，供系統邏輯決策使用。
支持多種信號類型的線性化與轉換，便于系統集成。
三模冗余架構 (TMR)：
模塊設計符合 Triconex TMR 架構標準，提高系統容錯能力和安全性。
即使單通道或單模塊出現故障，系統仍能正常運行，保證安全和可靠性。
診斷與自檢功能：
內置自檢和健康監測功能，能夠?qū)崟r檢測模塊及通道狀態。
故障時可自動隔離異常通道，向主處理器發出報警，確保系統連續可靠運行。
環境適應性：
工業級設計，耐高溫、抗電磁干擾、防震動、防塵，適用于復雜工況環境。
安裝與集成：
模塊化設計，可直接插入 Triconex 系統機架。
可與 3008 主處理器、3625/3664 I/O 模塊及 HMI 操作面板無縫協作，實現數據采集與控制。
安全與應用場景：
符合 IEC 61508 SIL3 安全標準，適合關鍵安全控制系統使用。
廣泛應用于石油化工、煉油廠、天然氣平臺、電力及海上平臺等工業安全系統。
用于緊急停機 (ESD)、過程聯鎖、關鍵設備監控和工藝優化控制。
TRICONEX 3700A分析模塊 英文介紹
TRICONEX 3700A Analysis Module Product Features
Product Overview:
The TRICONEX 3700A analysis module is one of the key modules in the Tricon Safety System, used for monitoring, collecting, and analyzing analog and digital signals in industrial processes, providing reliable real-time data for the main processor.
Data collection capability:
Support multi-channel analog input (AI) and digital input (DI) signal acquisition.
Real time monitoring of various process parameters such as temperature, pressure, flow rate, voltage, and current.
High precision data collection ensures the accuracy of system control and safety logic.
Analysis and processing functions:
Real time analysis, filtering, and anomaly detection of collected signals.
Can generate alarm signals for system logic decision-making.
Support linearization and conversion of multiple signal types, facilitating system integration.
The third mock examination redundant architecture (TMR):
The module design complies with the Triconex TMR architecture standard, improving the system's fault tolerance and security.
Even if a single channel or module fails, the system can still operate normally, ensuring safety and reliability.
Diagnostic and self checking functions:
Built in self checking and health monitoring functions, capable of real-time detection of module and channel status.
When a fault occurs, the abnormal channel can be automatically isolated and an alarm can be sent to the main processor to ensure the continuous and reliable operation of the system.
Environmental adaptability:
Industrial grade design, resistant to high temperatures, electromagnetic interference, vibration, and dust, suitable for complex working environments.
Installation and integration:
Modular design, can be directly inserted into the Triconex system rack.
It can seamlessly collaborate with the 3008 main processor, 3625/3664 I/O modules, and HMI operation panel to achieve data acquisition and control.
Security and application scenarios:
Compliant with IEC 61508 SIL3 safety standard, suitable for use in critical safety control systems.
Widely used in industrial safety systems such as petrochemicals, refineries, natural gas platforms, power and offshore platforms.
Used for emergency shutdown (ESD), process interlocking, critical equipment monitoring, and process optimization control.

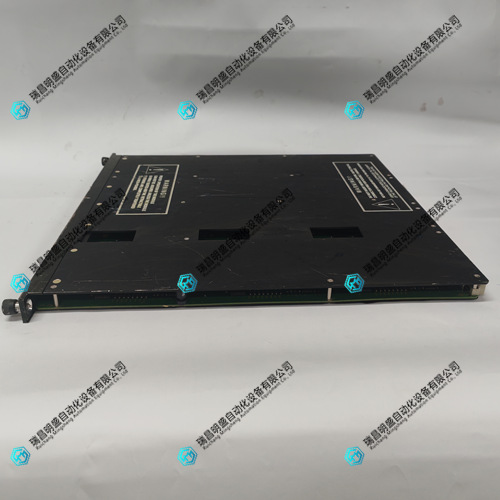

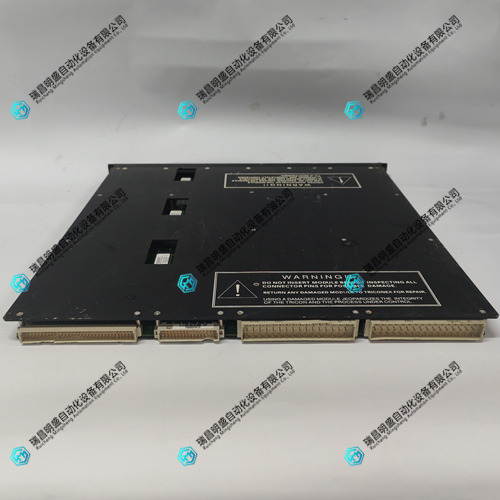

TRICONEX 3700A分析模塊 產品展示
