旋轉真空過濾器系列
旋轉真空過濾器系列包含兩個基本設計原則：Metsos過濾器專為高真空操作而設計，允許極高的空氣流量。這導致：–更高的容量–更低的濾餅水分–擴展的應用范圍模塊化組件和設備導致：–機器配置的靈活性–可添加或更改功能以適應工藝變化–從成熟的、，標準部件–簡化維護和零件更換–降低設備和運營成本BTF型帶式滾筒過濾器BTF型皮帶式滾筒過濾器在所有方面都與TF系列相同，但有一個基本例外：濾餅排放。使用帶式滾筒過濾器，在脫水區之后將布從滾筒中取出，并在洗滌之前經過濾餅排放系統。
真空過濾工業脫水技術
真空過濾是一種成熟的工業脫水技術。Metso成功交付并安裝了數百臺旋轉真空過濾器，涵蓋了廣泛的應用領域。所有旋轉真空過濾器的工作原理都相似。通過真空施加滾筒表面和內部之間的壓差。這種壓差導致液體通過過濾表面?zhèn)鬏?，同時過濾介質捕獲固體顆粒并形成濾餅。當滾筒旋轉時，濾餅上升到過濾罐中的泥漿液位以上，空氣通過濾餅被吸入，迫使液體流出。液體（過濾物）通過內部管道和真空頭離開過濾器。鼓式過濾器型號BTF 1.鼓式2.鼓式驅動裝置3.支撐架4.罐5.真空頭6.攪拌器BTF型鼓式過濾器的主要部件1.濾餅排放系統配重和杠桿臂2.氣動隔膜氣缸3.氣缸張緊彈簧4.光學或氣動布邊傳感器5.導向滑輪
Rotary vacuum filter series
It contains two basic design principles: Metsos filters are designed for high vacuum operation and allow very high air flow. This leads to: – higher capacity – lower cake moisture – expanded application range Modular components and equipment lead to: – flexibility of machine configuration – functions can be added or changed to adapt to process changes – from mature,, standard components – simplified maintenance and parts replacement – lower equipment and operating costs BTF belt drum filter BTF belt drum filter is the same as TF series in all aspects, There is one basic exception: cake discharge. Using a belt drum filter, remove the cloth from the drum after the dewatering area and pass through the cake discharge system before washing.
Vacuum filtration industrial dehydration technology
Vacuum filtration is a mature industrial dehydration technology. Metso successfully delivered and installed hundreds of rotary vacuum filters, covering a wide range of applications. All rotary vacuum filters operate on a similar principle. The differential pressure between the surface and inside of the drum is applied by vacuum. This differential pressure causes the liquid to pass through the filter surface, while the filter medium captures solid particles and forms a filter cake. When the drum rotates, the filter cake rises above the mud level in the filter tank, and air is sucked in through the filter cake, forcing the liquid to flow out. The liquid (filter material) leaves the filter through the internal pipe and vacuum head. Drum filter model BTF 1. Drum 2. Drum drive 3. Support 4. Tank 5. Vacuum head 6. Main components of agitator BTF drum filter 1. Filter cake discharge system counterweight and lever arm 2. Pneumatic diaphragm cylinder 3. Cylinder tension spring 4. Optical or pneumatic cloth edge sensor 5. Guide pulley
產品優勢
1：國外專業的供貨渠道，具有價格優勢
2：產品質量保證，讓您售后無憂
3：全國快遞包郵
4：一對一服務
公司主營范圍簡介

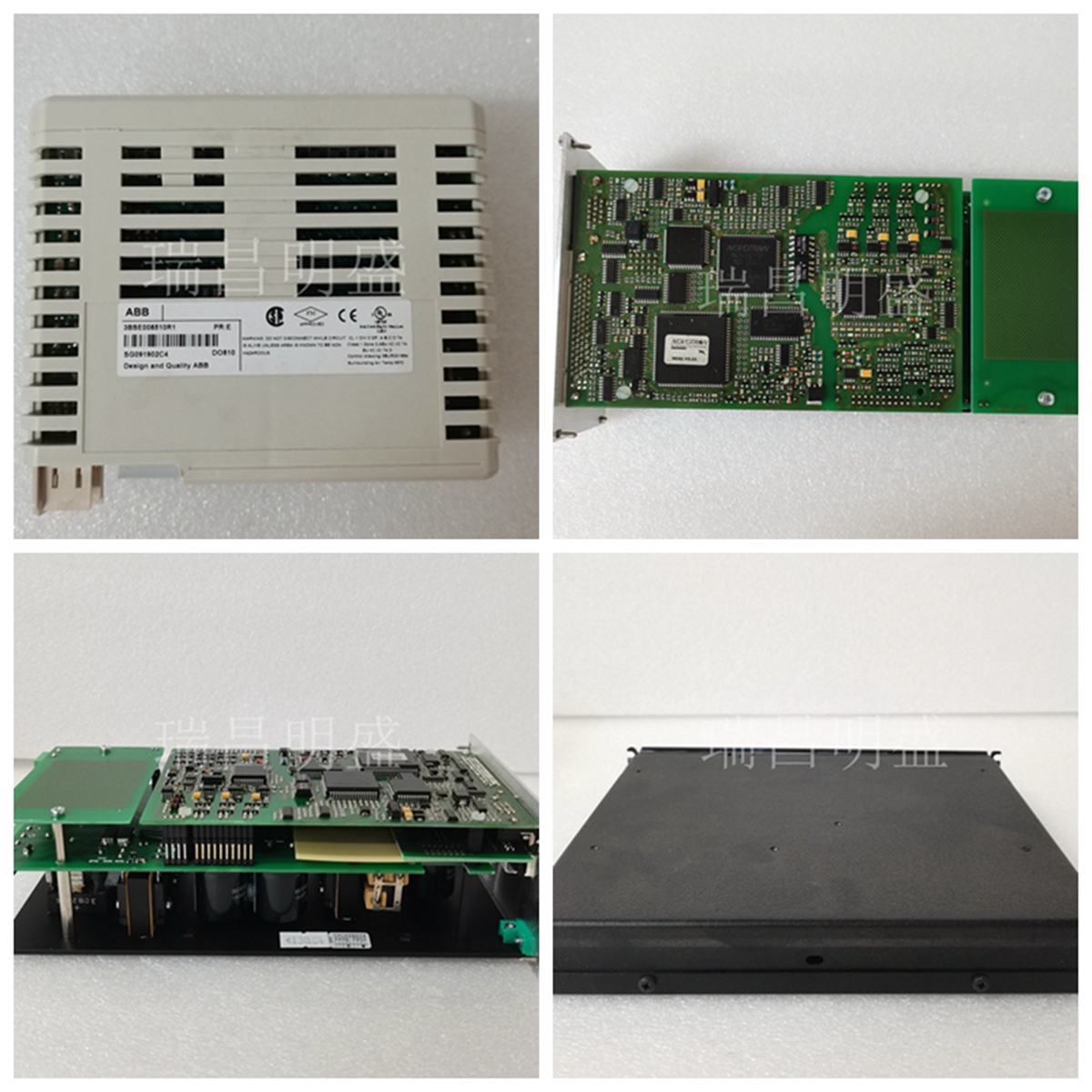

PLC可編程控制器模塊，DCS卡件，ESD系統卡件，振動監測系統卡件，汽輪機控制系統模塊，燃?xì)獍l(fā)電機備件等，優勢品牌：Allen Bradley、BentlyNevada、ABB、Emerson Ovation、Honeywell DCS、Rockwell ICS Triplex、FOXBORO、Schneider PLC、GE Fanuc、Motorola、HIMA、TRICONEX、Prosoft等各種進口工業零部件、歐美進口模塊。
