MSK060C-0300-N N-S1-UP0-NNNN 伺服電機 PDF資料
1.產 品 資 料 介 紹：
MSK060C-0300-N N-S1-UP0-NNNN 伺服電機簡介
MSK060C-0300-N N-S1-UP0-NNNN 是博世力士樂（Bosch Rexroth）MSK 系列的一款高性能同步伺服電機。該系列以高精度、高功率密度和優異的動態響應著稱，常用于需要高速定位與精密控制的先進自動化設備。
產品特性
高動態響應：轉子慣量優化，適合快速啟停、頻繁反轉等高動態應用。
高分辨率編碼器系統：UP0 代表電機采用高精度絕對值編碼器，便于進行精確位置與速度反饋。
緊湊結構：MSK060 尺寸段體積小、重量輕，安裝方式靈活。
穩定輸出：0300 規格代表其額定扭矩處于該系列中低段，適合中等負載應用。
優良散熱：C 型機體具備良好的散熱性能，提高持續輸出能力。
典型技術參數范圍
（MSK060 系列常見配置供參考，具體數值隨版本略有差異）
額定扭矩：約 1.6–3.0 Nm
峰值扭矩：可達 4–8 Nm
額定速度：一般 3000 rpm 左右
峰值速度：可至 4500–6000 rpm
反饋方式：高分辨率絕對值編碼器
冷卻方式：自然風冷
絕緣等級：F 級
典型應用
精密傳動機構
自動化裝配線
電子半導體設備
包裝機械
CNC 中小軸伺服系統
高速點位系統與搬運設備
MSK060C-0300-N N-S1-UP0-NNNN 伺服電機 英文介紹
Introduction to MSK060C-0300-N N-S1-UP0-NNNN servo motor
MSK060C-0300-N N-S1-UP0-NNNN is a high-performance synchronous servo motor from Bosch Rexroth's MSK series. This series is known for its high precision, high power density, and excellent dynamic response, and is commonly used in advanced automation equipment that requires high-speed positioning and precise control.
Product Features
High dynamic response: optimized rotor inertia, suitable for high dynamic applications such as fast start stop and frequent reversal.
High resolution encoder system: UP0 represents the motor using a high-precision absolute value encoder, which facilitates precise position and velocity feedback.
Compact structure: MSK060 size segment has small volume, light weight, and flexible installation method.
Stable output: The 0300 specification represents its rated torque in the mid to low range of the series, suitable for medium load applications.
Excellent heat dissipation: The C-type body has good heat dissipation performance, improving continuous output capability.
Typical technical parameter range
(MSK060 series common configurations for reference, specific values may vary slightly depending on the version)
Rated torque: approximately 1.6-3.0 Nm
Peak torque: up to 4-8 Nm
Rated speed: generally around 3000 rpm
Peak speed: up to 4500-6000 rpm
Feedback method: High resolution absolute value encoder
Cooling method: natural air cooling
Insulation level: F level
Typical Applications
Precision transmission mechanism
Automated assembly line
Electronic semiconductor equipment
packaging machinery
CNC small axis servo system
High speed point system and handling equipment

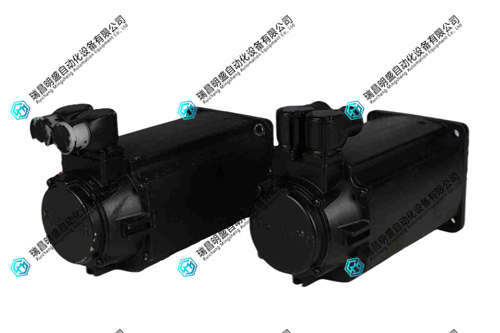

MSK060C-0300-N N-S1-UP0-NNNN 伺服電機 產品展示
